Fluid Power, Inc.


Flairline NFPA Interchangeable Cylinders

Eliminating the tie rods means space-saving NFPA mounting, lighter weight, economy, and easy maintenance.

Flairline NFPA interchangeable cylinders can be used in nearly all applications where lightweight, economical, long-service actuators are required. Operating systems can be hydraulic or pneumatic. Low friction pneumatic service is available with Series OILF which is designed primarily for use on low pressure applications, and where low minimum break-away is required.

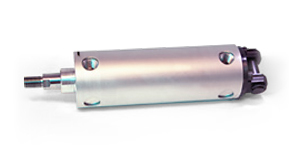

Model OILF Low Friction 1DB

Chrome plated, high-strength steel piston rods are corrosion resistant, rugged, and durable. Three NFPA rod end options are offered. Stainless steel is available as an option.
Lightweight aluminum heads and caps provide long corrosion-resistant life.
Precision drawn, lightweight aluminum barrels are hard-anodized inside and out for corrosion and abrasion resistance. Fine I.D. microfinish provides long life and positive sealing.
Adjustable cushions, available on 2” bore and larger, are flush with the O.D. of the cylinder. The 1-1/2” bore has fixed cushions.
Cylinders are lubricated for life.
Maximum working pressure:
  • 150 psi Pneumatic
  • 250 psi Hydraulic

» »
